The Chaparral 30 Surf is the largest current Chaparral surf boat, combining a 9-foot beam, 100-gallon fuel system, yacht certification, and a 30-foot social deck with the same wake-shaping mission.
The Chaparral GTS 30 Surf is the largest current Chaparral surf boat, combining a 9-foot beam, 100-gallon fuel system, yacht certification, and a 30-foot social deck with the same wake-shaping mission. The 30 Surf is a current 2026 Chaparral model.
The 30 Surf is not simply a stretched 28. Its 9-foot beam and 100-gallon fuel capacity make it the marina-scale member of the Chaparral surf family.
For the 30 Surf, the published ballast figure is 1,080 lbs.
The 30 Surf carries 100 gallons of fuel and is rated for Yacht Certified.
The 30 Surf should be treated like a marina boat first and a trailer boat second. A nine-foot beam can require oversize considerations on the road, and the complete rig becomes far longer than the 30-foot-2-inch published boat length once the trailer tongue is included.
The 30 Surf creates the most passenger room and range in this family, but the 9-foot beam moves it beyond ordinary trailer width and its 6,600-pound dry weight becomes a serious tow, lift, and storage commitment.
A buyer should also compare 28 Surf or GTS 6 before committing.
The 30 Surf is the model for buyers who have stopped pretending the boat needs to fit ordinary bowrider logistics. At 30 feet 2 inches, 9 feet wide, and 6,600 pounds dry, it is a large social platform that happens to deliver Chaparral’s full surf hardware rather than a surf boat that happens to have family seating.
Its yacht certification and 100-gallon fuel capacity support long days with larger groups, but those numbers also move the boat toward marina ownership. A buyer who expects to tow every weekend should solve permits, route width, storage, and tow rating before the interior or Black Edition package influences the decision.
Published factory figures. Confirm every dimension against the individual boat before you commit.
The 30 Surf uses Chaparral’s Extended V-Plane running-surface concept with a surf-specific hull and Kevlar-reinforced laminate in the current equipment set.
At 30′ 2″ long and 9′ 0″ wide, the 30 Surf occupies a very different storage footprint from its nearest sibling.
Chaparral publishes a 22° transom deadrise.
Published dry weight with engine is 6,600 lbs.
Draft with the drive up is 30″.
Inspect a used 30 Surf along the keel, chines, strakes, transom, and swim-platform structure.
Finally, compare the capacity label with Chaparral’s published Yacht Certified reference.
The 9-foot beam is the specification that changes the 30 Surf ownership story. Six inches wider than the 28 may not sound dramatic at the dock, but it can trigger oversize transport requirements and can require a wider lift. The extra width only pays off when the family actually uses the added cockpit room.
Configuration: Forward-drive sterndrive; 430-HP Mercury or Volvo examples are current
Current 30 Surf examples use forward-drive sterndrives because wakesurfing places the rider directly behind the transom.
The 30 Surf is not an outboard surf boat.
Maximum published power is 430 HP. That number should be viewed in the context of 6,600 lbs of dry weight, 100 gallons of fuel, and the normal passenger load rather than treated as a bragging-rights specification.
On a used 30 Surf, document engine hours and service history.
The 30 Surf combines a 100 gallons fuel system with 1,080 lbs of published ballast.
The 30 Surf has 15 gallons of published freshwater capacity. The 30 Surf carries published freshwater and holding-system specifications, so the head compartment and plumbing are part of the ownership inspection.
The 30 Surf’s 100-gallon tank is the largest in this requested family. Completely full, it contributes roughly 600 pounds before the 1,080-pound ballast system is filled. With passengers and gear, the boat can be carrying well over a ton of variable load, so owners should learn how fuel level changes acceleration and surf setup rather than treating every session the same.
The 30 Surf has two performance personalities: ordinary Chaparral bowrider behavior and ballast-loaded surf behavior.
The 30 Surf publishes 1,080 lbs of ballast.
After the surf test, empty ballast and run the 30 Surf at normal family cruise.
The 30 Surf is the right performance choice when its ballast, power, passenger room, and storage requirements match the riders who will actually use it.
The 30 Surf shares the 1,080-pound ballast figure and 430-horsepower ceiling with the 28, so its performance advantage is not a larger ballast number. Instead, the boat delivers more platform, more fuel, and a wider social cockpit. Buyers should test whether the same horsepower still feels sufficiently responsive under the heavier loaded condition.
A 100-gallon tank plus ballast and a full group can add well over a thousand pounds of variable load. During the surf test, watch the time to reach rider speed and how stable the boat remains while turning back to pick up a fallen surfer.
The 30 Surf is still a Chaparral bowrider first, which matters because the family may spend more time cruising, swimming, and sitting at anchor than actively surfing.
On the 30 Surf, storage discipline matters because boards are long, ballast equipment takes space, and a loose cooler can block the walk-through transom.

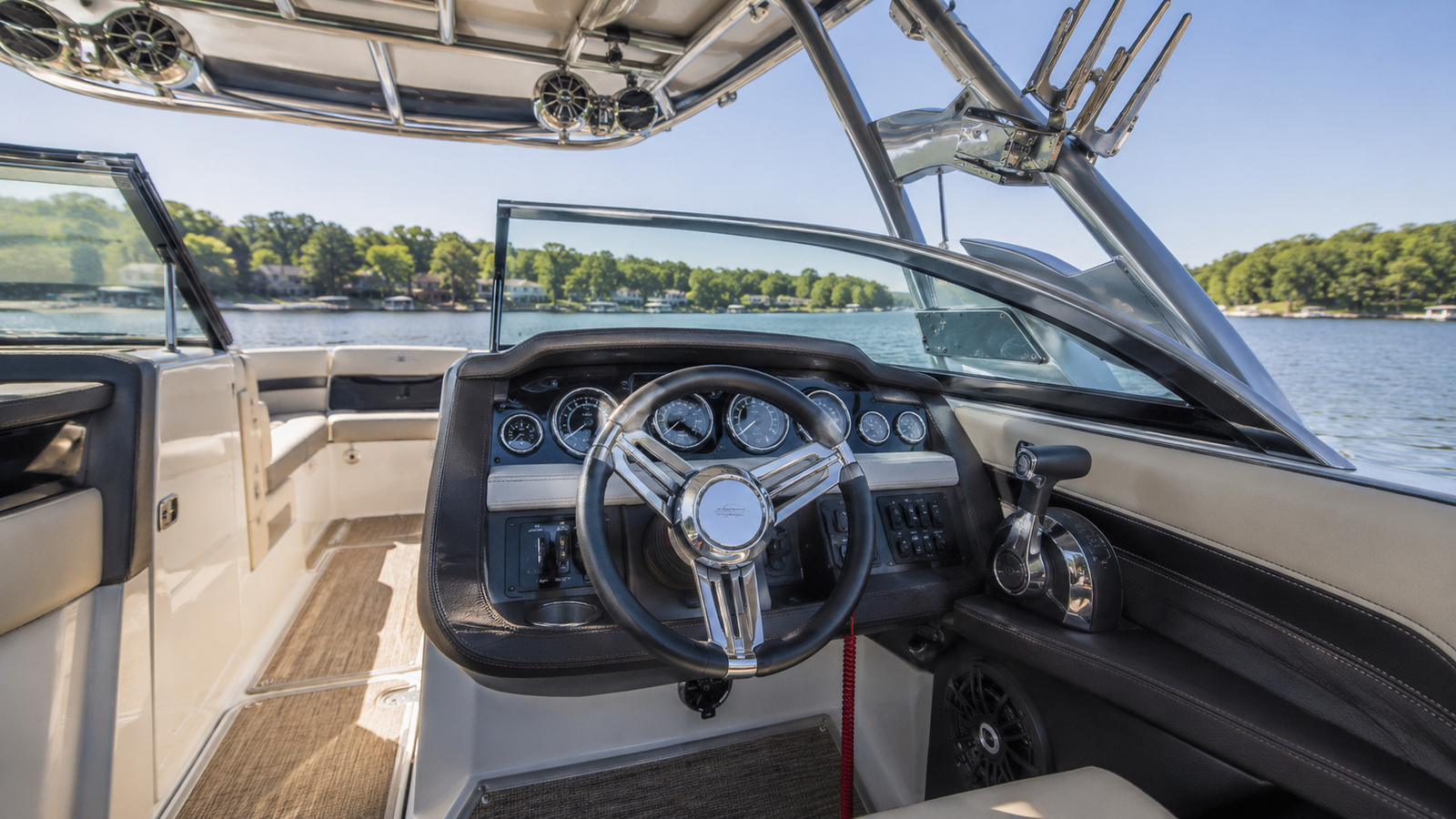

At the helm, Twin Simrad NSX9 EVO3 multifunction displays with surf controls.
The Electric folding arch / available sport-rack configurations should be viewed as both watersports equipment and a storage-height decision.

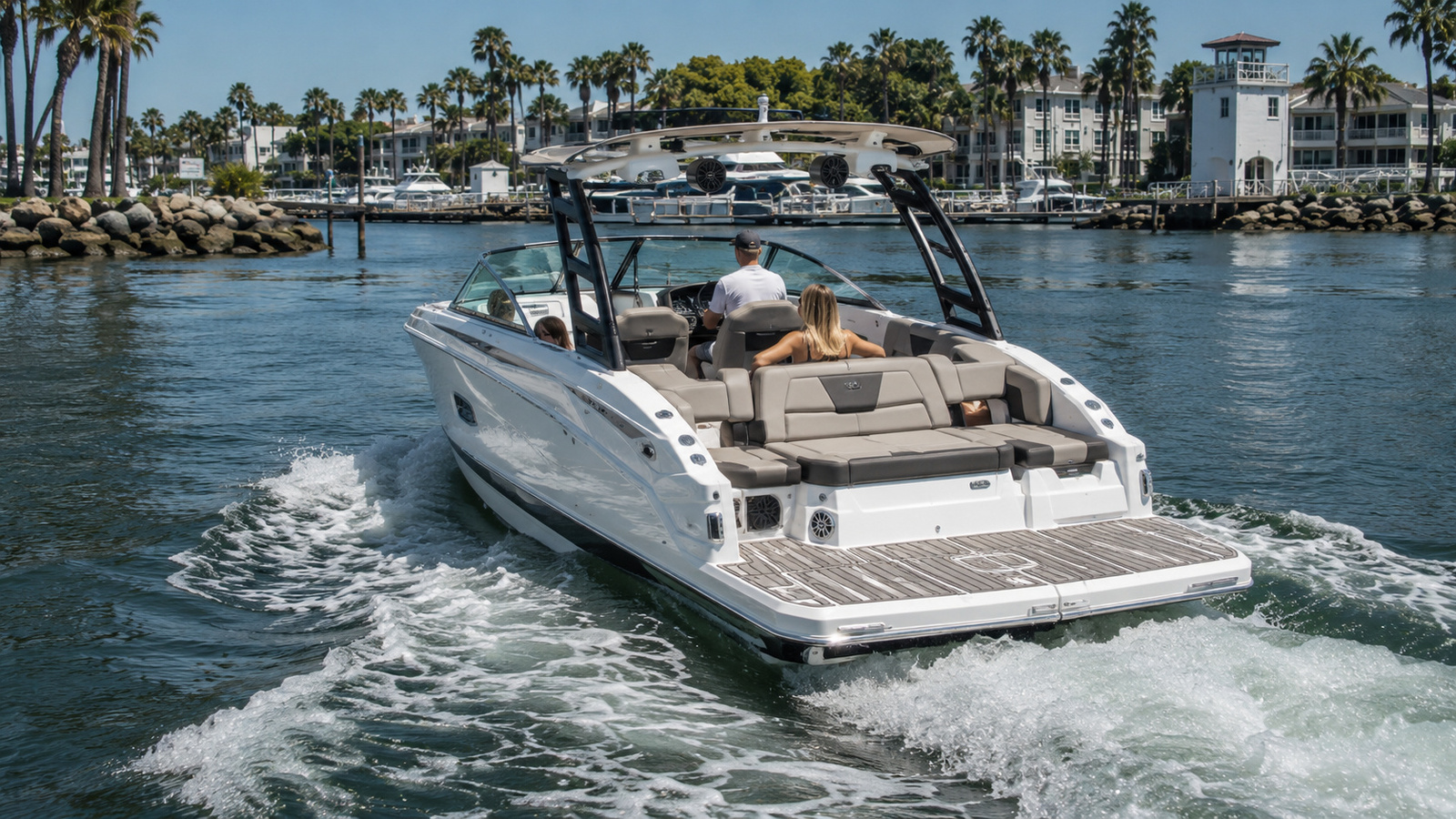

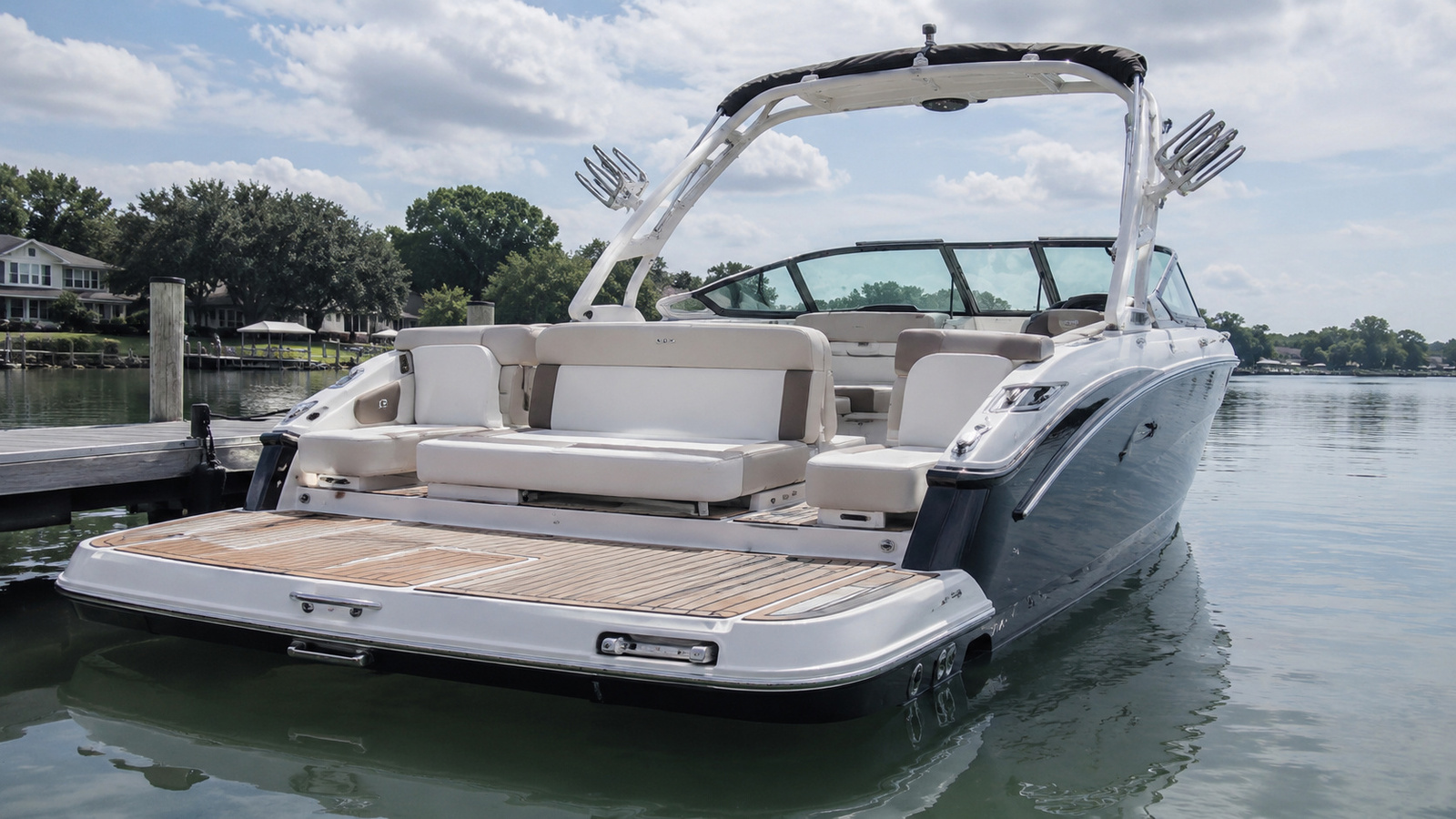

Infinity Power Step swim platform gives riders a staging area, and the forward-drive layout keeps propellers away from the extreme aft edge.
The extra beam also changes how the cockpit feels when several adults are aboard. Buyers should compare a 28 Surf and 30 Surf back to back because the 30 earns its ownership burden only if the crew actually benefits from the wider social space.

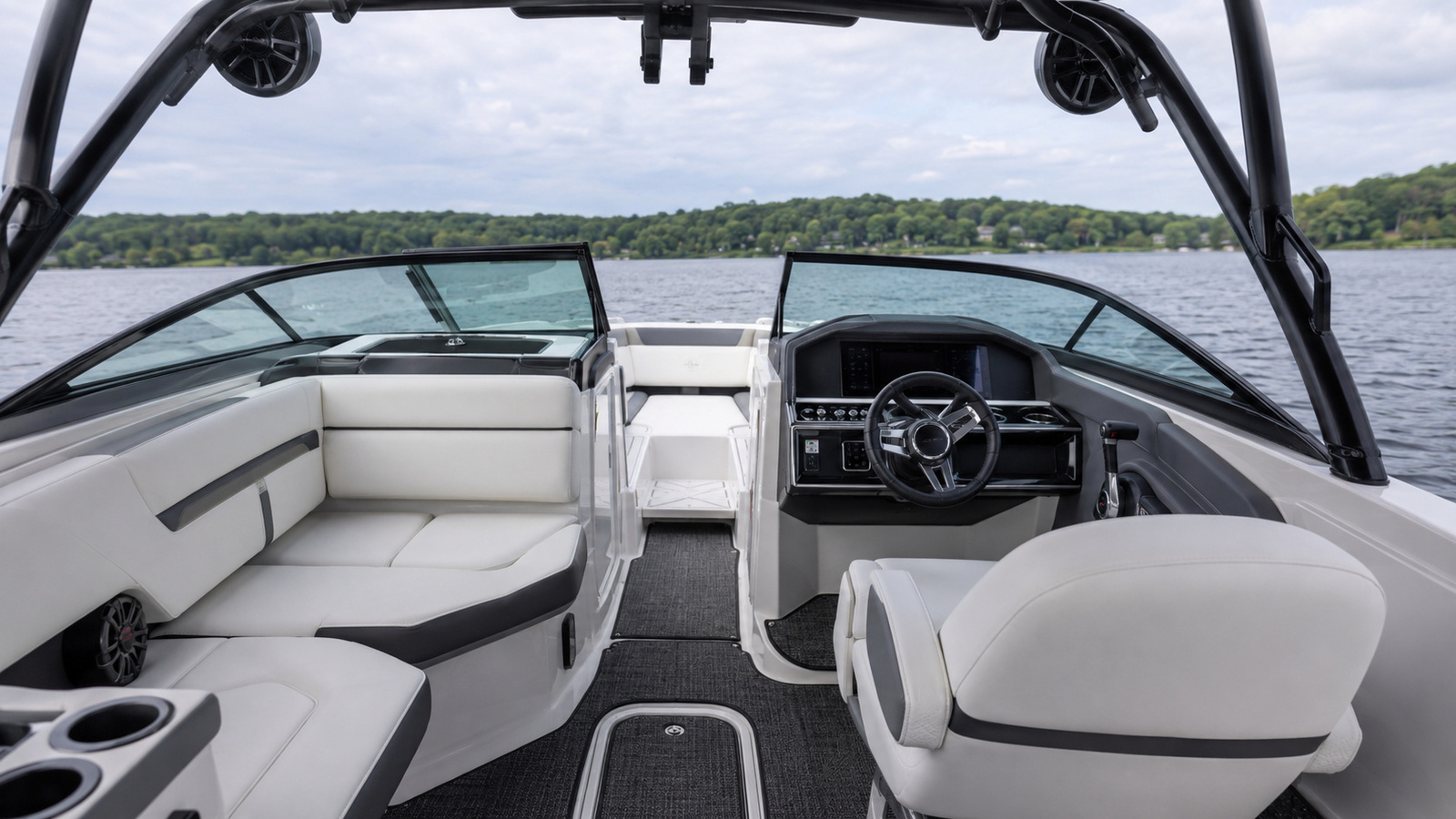

Double-wide helm seating suits the scale of the 30 Surf because this boat is likely to carry adults for longer runs, not just short rider sessions. Check sightlines with the windshield, arch, and seated bow passengers in place; the helm should remain comfortable when the cockpit is full.
The 30 Surf also has enough room for the head compartment and 15-gallon freshwater system to feel integrated rather than squeezed into the console. That makes it a better host boat for all-day groups, but it adds plumbing, holding-tank care, and winterization that a compact GTS owner never has to manage.
1,080-Lb Ballast System – A 1,080-pound published ballast system adds displacement without relying only on passenger placement.
The 30 Surf uses Malibu Surf Gates as the primary wake-shaping hardware for quick side-to-side rider changes.
Twin NSX9 EVO3 displays give the 30 Surf a large-screen helm for navigation, engine data, audio, and surf settings.
The powered step reduces the climb from the water and makes repeated rider recovery easier on a tall 30-foot platform.
The head compartment, sink, and pressurized freshwater system matter on a boat designed for all-day groups.
Chaparral gives the 30 Surf broader helm seating that matches the scale of the cockpit rather than using a compact single bucket.
The folding arch carries shade and sport hardware while lowering bridge clearance for storage.
The 30 Surf has more systems than an ordinary runabout because surf control adds ballast pumps, gates, electronic rider presets, and a forward-drive power package to the normal bowrider equipment.
Start with Twin Simrad NSX9 EVO3 multifunction displays with surf controls.
Inspect batteries and charging.
On the larger 30 Surf, freshwater and head equipment should be run long enough to reveal leaks.
The 30 Surf is also the model where electrical reserve becomes more important. Twin displays, large audio systems, pumps, powered arch or hardtop equipment, head systems, and lighting can all operate while the engine is off at anchor. Battery age and charger performance should be checked under load because voltage problems can appear first as random electronics behavior.
The 30 Surf publishes 30′ 2″ of overall length, 9′ 0″ of beam, and 6,600 lbs of dry weight with engine.
The 30 Surf’s 9-foot beam exceeds conventional 8-foot-6-inch road width, so routine trailering can require oversize planning depending on jurisdiction.
Bridge clearance is 8′ 7″ with arch / 6′ 1″ folded.
Ramp depth matters because the 30 Surf has a published drive-up draft of 30″.
A 9-foot beam is not a minor specification when the boat changes lakes or states. Even if a local marina hauls the 30 Surf routinely, an owner who plans road trips should understand permit rules before purchase. Professional hauling can be the better answer for occasional moves, but that cost belongs in the ownership budget from the beginning.
The 30 Surf sits in a high-dollar, lower-volume sport-boat market. New and late-model used examples can differ sharply by engine, arch or hardtop equipment, Black Edition treatment, electronics, and trailer or marina setup.
The 30 Surf should have working Malibu Surf Gates, functional ballast, surf controls, and a drive configuration that matches the model year.
The best 30 Surf value is not automatically the cheapest boat.
On the 30 Surf, the expensive choices are not limited to horsepower. HTX hardtop or arch equipment, Black Edition treatment, twin Simrad displays, upgraded audio, board racks, underwater lighting, windlass, and marina setup can all move the total purchase. Build comparisons should therefore be made option by option.
Illustration only and not an offer of credit.
Illustration only and not an offer of credit. Your actual rate and term depend on credit profile, vessel age, loan amount and ownership structure.
The first cross-shop for the 30 Surf is 28 Surf or GTS 6.
The 30 Surf is not simply a stretched 28. Its 9-foot beam and 100-gallon fuel capacity make it the marina-scale member of the Chaparral surf family.
The 30 Surf publishes 1,080 lbs of ballast and 100 gallons of fuel capacity.
The main tradeoff remains: The 30 Surf creates the most passenger room and range in this family, but the 9-foot beam moves it beyond ordinary trailer width and its 6,600-pound dry weight becomes a serious tow, lift, and storage commitment.
The 30 Surf should not be purchased merely because it is the flagship. Its extra two inches of length over 30 feet and wider beam only matter when the crew needs the room, fuel, and all-day hosting capability. For a smaller family, the 28 Surf preserves nearly the same surf-system specifications with easier transport and a lower dry weight.
Start a 30 Surf purchase with the exact model year and engine package.
Verify the hull identification and compare the seller’s dimensions with the current published 30′ 2″ LOA, 9′ 0″ beam, 6,600 lbs dry weight, 100 gallons fuel capacity, and 430 HP maximum horsepower reference.
Fill the 1,080 lbs ballast system and drain it.
The Twin Simrad NSX9 EVO3 multifunction displays with surf controls should make rider setup repeatable without fault messages.
Walk every storage compartment.
On yacht-certified 30 Surf models, use common sense rather than treating certification as unlimited passenger capacity.
The 30 Surf can be a heavy loaded package, and tandem-axle brakes, tires, bearings, bunks, guides, winch, and tongue hardware deserve a separate inspection.
The 30 Surf sits in a high-dollar, lower-volume sport-boat market. New and late-model used examples can differ sharply by engine, arch or hardtop equipment, Black Edition treatment, electronics, and trailer or marina setup.
Price annual storage and winterization.
Finally, compare 28 Surf or GTS 6. The 30 Surf should remain the better answer after the tow, storage, passenger, and service plan are all understood.
A 30 Surf lift should be sized with more margin than the 6,600-pound dry figure suggests. Full fuel can add about 600 pounds, and batteries, gear, options, and any retained ballast push the load higher. Verify bunk placement around surf hardware and forward-drive clearance before assuming an existing lift will work.
The 28 Surf is the key alternative for any buyer who is uncertain about size. Both deliver yacht certification, 1,080 pounds of ballast, a head, freshwater, and up to 430 horsepower. The 30 should win because the family needs the 9-foot beam and 100-gallon range, not merely because it is the top model.
A buyer should also inspect marina compatibility with the arch fully deployed. The boat may physically fit the slip while bridge clearance, roof structure, or covered-lift geometry creates a problem overhead. The published 8-foot-7-inch arch clearance and 6-foot-1-inch folded figure provide a starting point, but radar, speakers, or owner-added equipment can change the real height.
A financing-ready 30 Surf listing should identify the exact forward-drive engine, tower or arch package, trailer, and major surf options. That matters because a lightly equipped 30 Surf and a premium build can share the same model name while creating very different purchase prices and replacement costs.
The clearer the configuration is before financing, the easier it is to compare the boat with a real sibling rather than a generic MSRP.
Resale on the 30 Surf will depend heavily on whether the surf hardware still works as a complete system. A future buyer can see gelcoat and upholstery immediately, but ballast pumps, Surf Gate actuators, Simrad controls, drive service, and tower hardware determine whether the boat still performs like a factory surf model. Keeping records for those systems protects more value than cosmetic detailing alone.
The final ownership question is frequency of use. A 30 Surf makes financial sense when the household uses both sides of its personality: ordinary Chaparral cruising and the surf system. If the family rarely fills ballast or deploys Surf Gates, a conventional Chaparral sport boat may offer less maintenance and a lower purchase price.
If riders surf often, the integrated factory package is exactly what separates the 30 Surf from an improvised tow boat.
Insurance and marina planning belong ahead of the purchase agreement on a 30 Surf. The combination of a 9-foot beam, 430-horsepower capability, powered surf equipment, and a high replacement value can affect both coverage and storage cost. A buyer should quote the exact boat and home marina before assuming the operating budget will resemble a smaller 28 Surf.
The 30 Surf’s extra cockpit width should be tested with a realistic group before paying for it. Put adults in the bow, helm, and aft seating, then move a rider and board through the stern. If the wider 9-foot platform does not noticeably reduce traffic around the cockpit, the 28 Surf may deliver nearly the same surf mission with easier transport.
Send Float Finance the actual 30 Surf listing with model year, engine package, seller type, and asking price.
Engine package, model year, tower or hardtop, Black Edition treatment, electronics, audio, flooring, trailer, and condition can move the 30 Surf transaction substantially.
Chaparral publishes 30′ 2″ LOA with the swim-platform reference used on the 2026 specification.
Chaparral publishes 1,080 lbs of ballast for the current 30 Surf.
Chaparral publishes 430 HP as the current maximum for the 30 Surf.
Yes. The current 30 Surf is designed around Chaparral’s GT Surf / Surf system with Malibu Surf Gates, ballast, touchscreen surf control, and forward-drive sterndrive propulsion.
It depends on size. The 30 Surf is 9′ 0″ wide and weighs 6,600 lbs dry with engine before fuel, trailer, gear, and options.
